DMG MORI CLX 450 TC

34,600.00 EUR

Status: Available

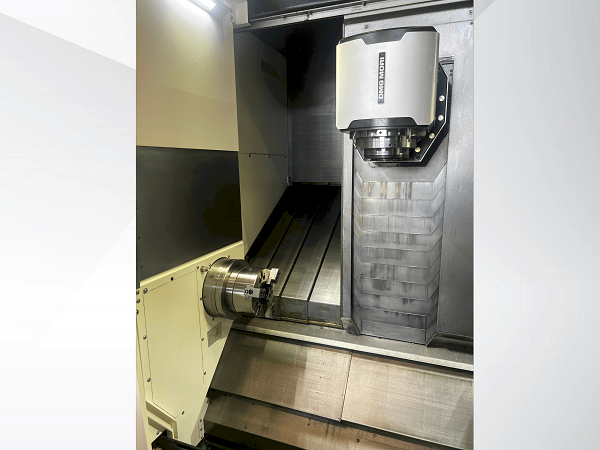

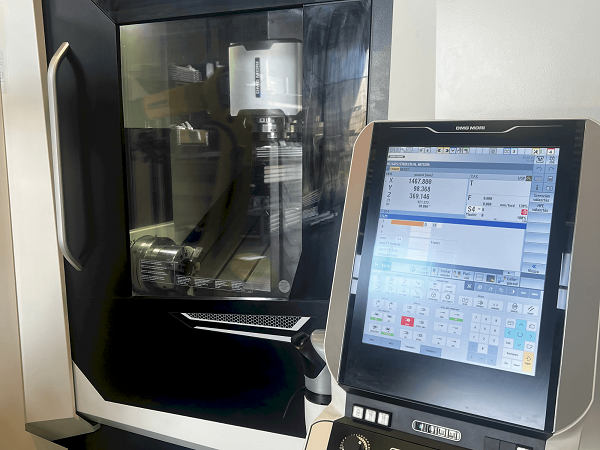

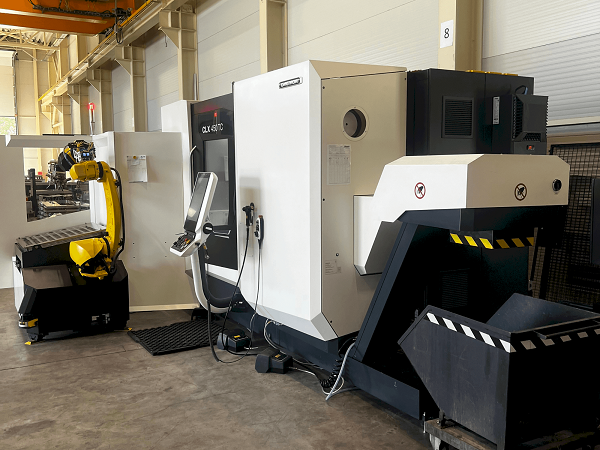

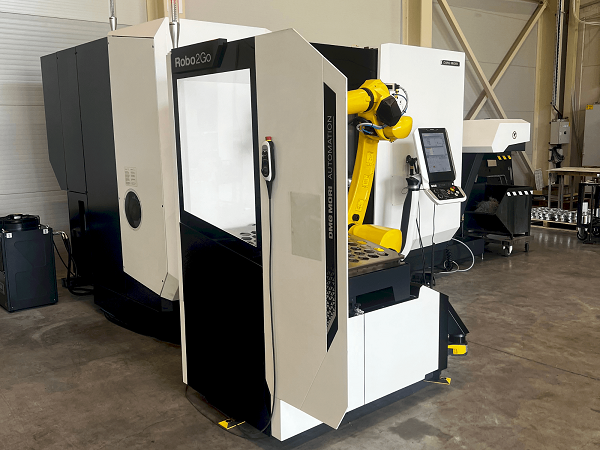

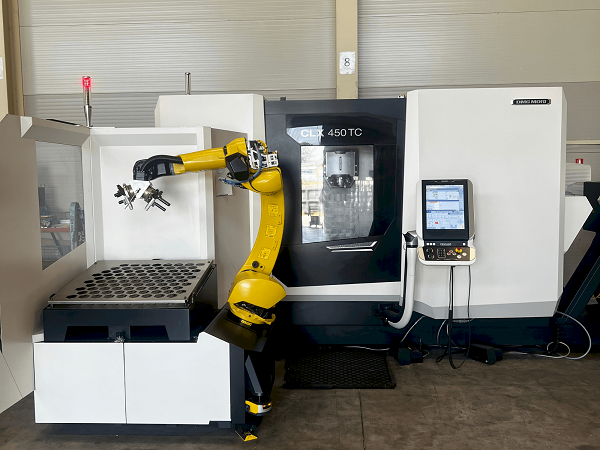

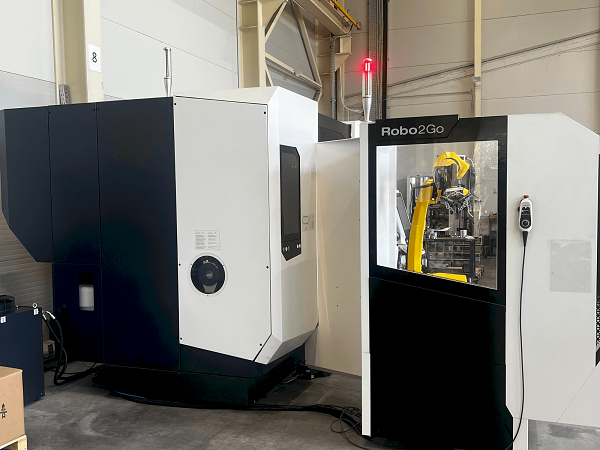

This 5-axis DMG MORI CLX 450 TC + Robo2GO was manufactured in 2024. It features a universal turning/milling center with a main spindle speed of up to 5000 rpm and a milling spindle speed of up to 12000 rpm. The machine has a B-axis with ±120° travel, a Y-axis travel of ±100 mm, and a 30-tool magazine. It is equipped with a Siemens 840D sl control, ensuring precision. Consider purchasing this DMG MORI CLX 450 TC + Robo2GO turning/milling center.


Dimensions Width: 2710 mm
Dimensions Depth: 3900 mm
Dimensions Height: 2470 mm
Machine Weight: 10000 kg
Spindle Speed ??Range: 5000 rpm
Spindle Motor Power: 14/17 kW
Number of Axes: 5
Dynamic dual-pressure clamping for the main and counter spindles
Tailstock function for the counter spindle with foot switch

Torque: 275/345 Nm
Hollow clamping device: Ø67 mm
B-axis: ±120°
Y-axis: ±100 mm
30-position chain magazine
Tailstock: hydraulically operated with foot control pedal

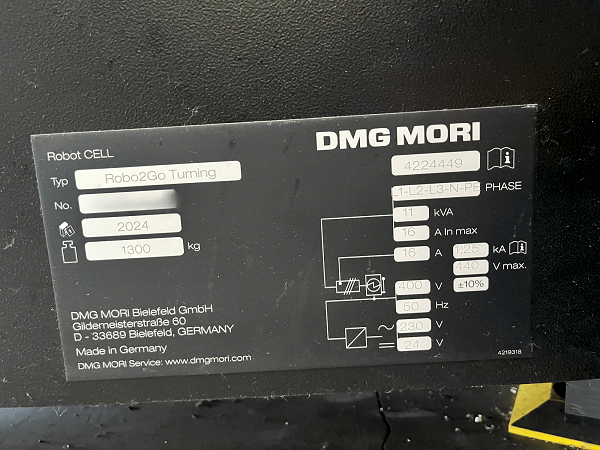

Document No. 4224449 Additional Information

Power: 11 kVA
Max. Input Current: 16 A
Short-Circuit Current: 1.25 kA
Maximum Voltage: 440 V ±10%
Control Voltage: 230 V
Signal Voltage: 24 V

Tools:

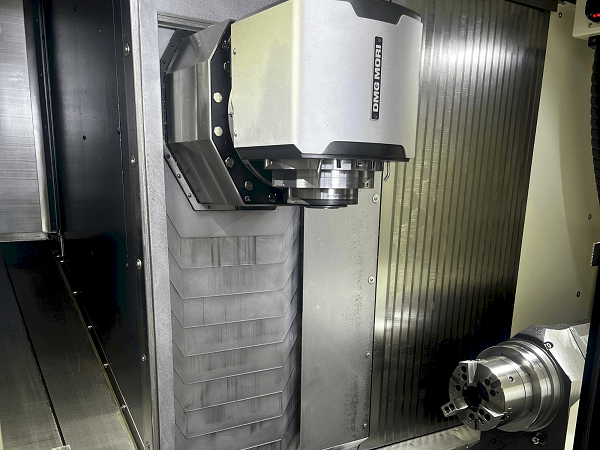

Turning/Milling Spindle
Drive Power: 8.8/10.5 kW
Torque: 73/90 Nm
Speed ??Range: 0-12000 rpm
Spindle Mount: HSK-A 63 DIN 69893
