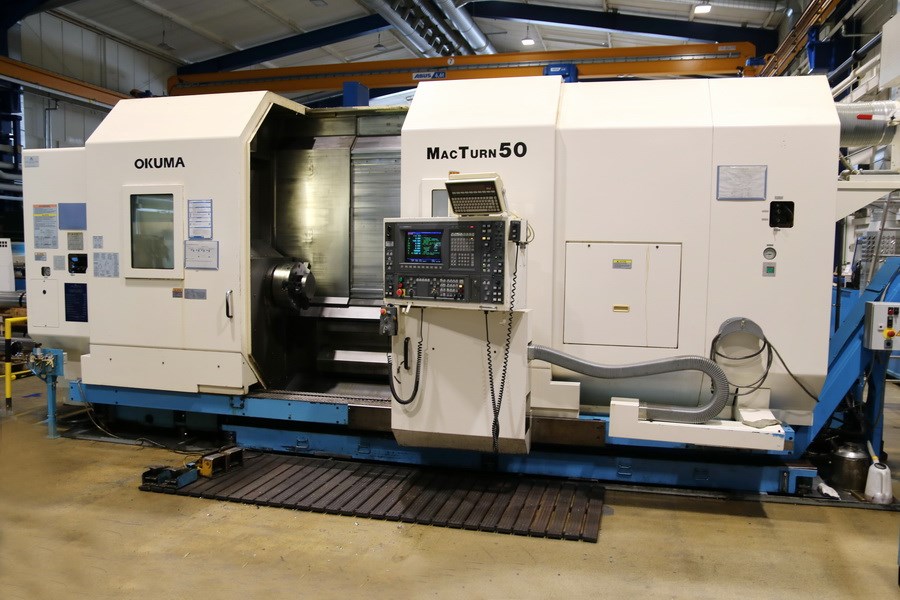

OKUMA - MacTurn 50

11,000.00 EUR

Status: Available

Machine type: CNC turning and milling center
Manufacturer: OKUMA
Type: MacTurn 50
Year of manufacture: 2000

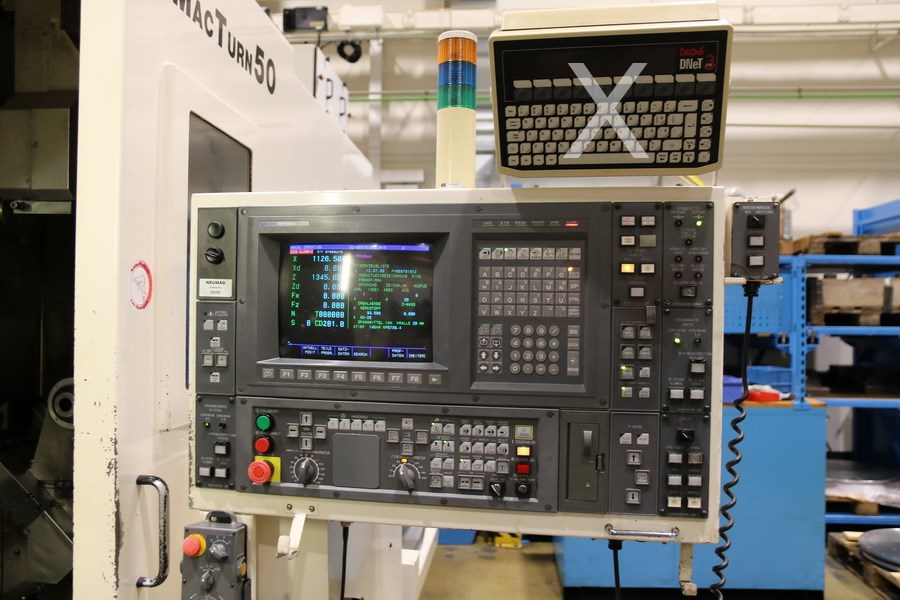

Control: OSP 7000 L
Location: D-59302 Oelde
Country of origin: Japan
Delivery time: By arrangement
Freight basis: Ex works
Additional information: CNC turning and milling center
OKUMA - MacTurn 50

Technical details:
Max. turning diameter: 580 mm
Turning length: 1500 mm
Control: OSP 7000 L
Swing diameter over bed: 610 mm
Swing diameter over carriage: 580 mm
Main spindle:
Speed ??range - main spindle: 12 - 2,800 rpm
Spindle bearing diameter: 150 mm
Spindle bore: 110 mm
Spindle nose: JIS A2-11
Drive power - main spindle: 37 (30) kW
C-axis: 0.001 °
Travel distances:
X-axis 598 mm
Y-axis 230 (+110 / -120) mm
Z-axis 1,660 mm
Feed rates:
Rapid traverse X / Y: 12,000 mm/min
Rapid traverse Z: 20,000 mm/min
Rapid traverse C: 100 min/-1
Cutting feed rate X / Z / Y: 0.001 - 1,000 mm/rev

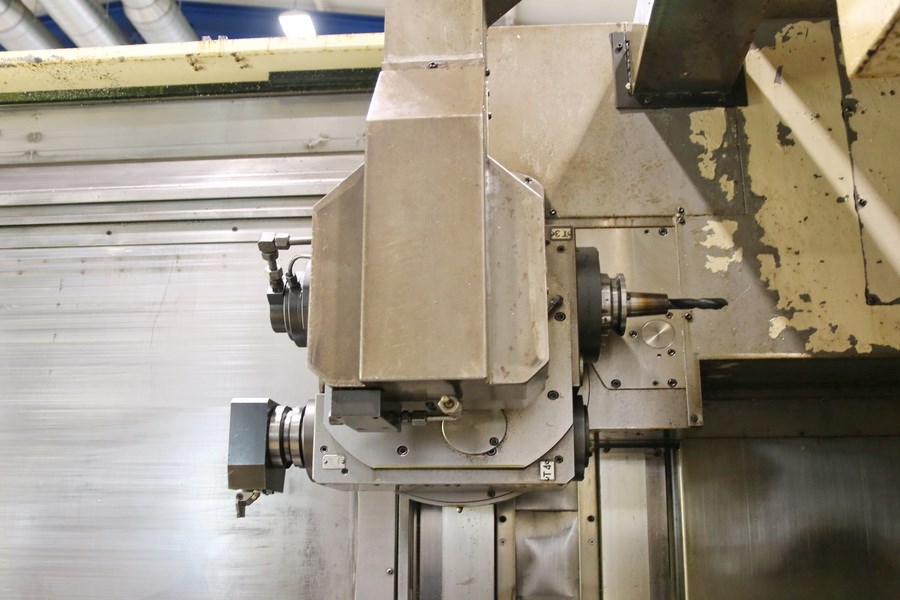

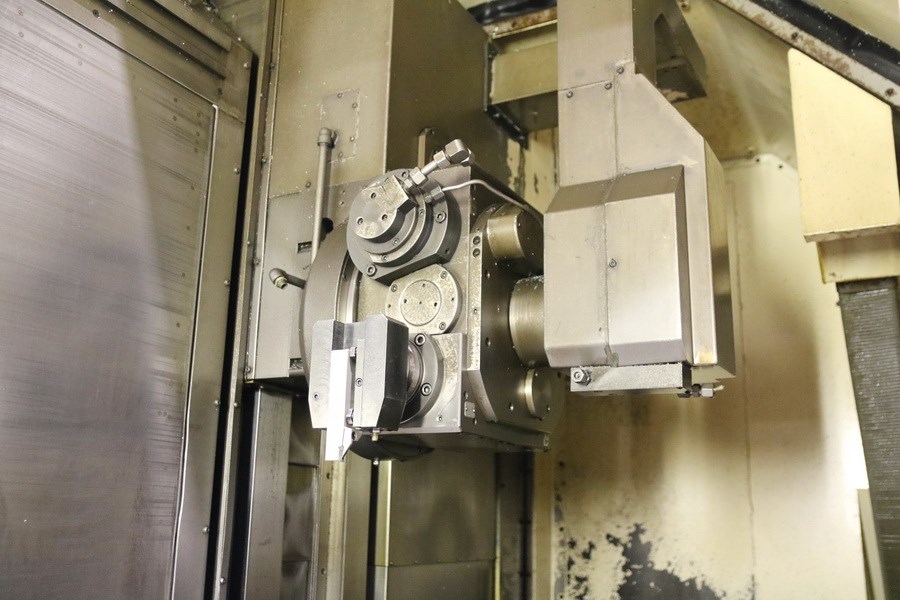

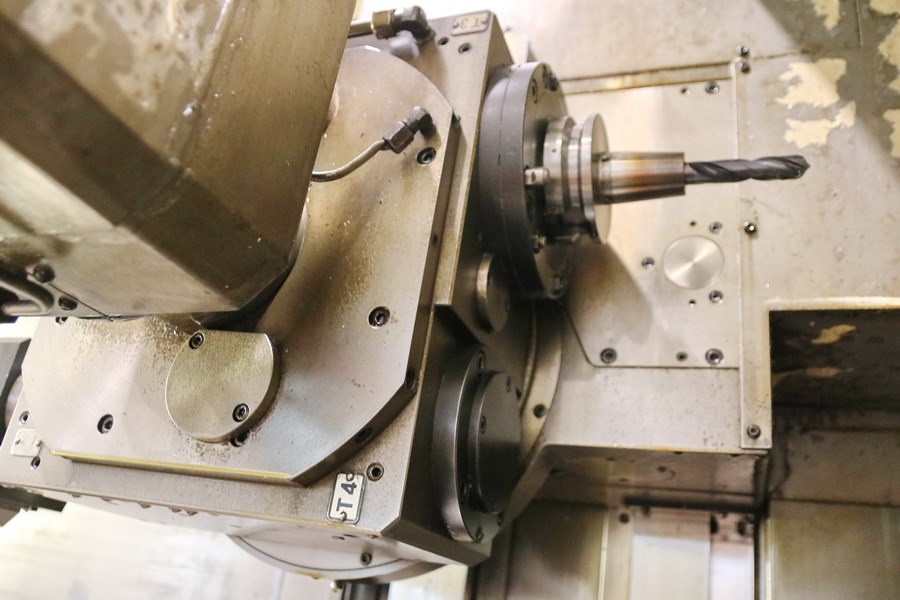

Tool turret:
Type H2 ATC
Number of tool positions: 2 (1x L-tool / 1x M-tool)

Driven stations: stepless
Rotational speed range - driven Tool stations: 40 - 3,000 min?¹
Tool shank height: 25 mm
Bore bar shank diameter: 50 mm
Tailstock:
Quick pin diameter: 120 mm
Quick pin stroke: 170 mm
Tailstock mount: MT 5
Tool magazine:
Number of tool positions: 50

Tool holder MAS BT 50
Max. tool diameter 170 mm
Max. tool length 350 mm
Max. tool weight 20 kg
Magazine drive 3.2 kW
Total power requirement 53 kVA
Machine weight approx. 18.5 t
Space requirement approx. 6.0 x 3.2 x 3.0 m

Accessories
Chip conveyor
Central coolant system
High-pressure cooling 20 bar
Tailstock
Signal lamp
C-axis 0.001°
Y-axis
Hydraulic unit
Steady rest
Various tool holders (44 positions)

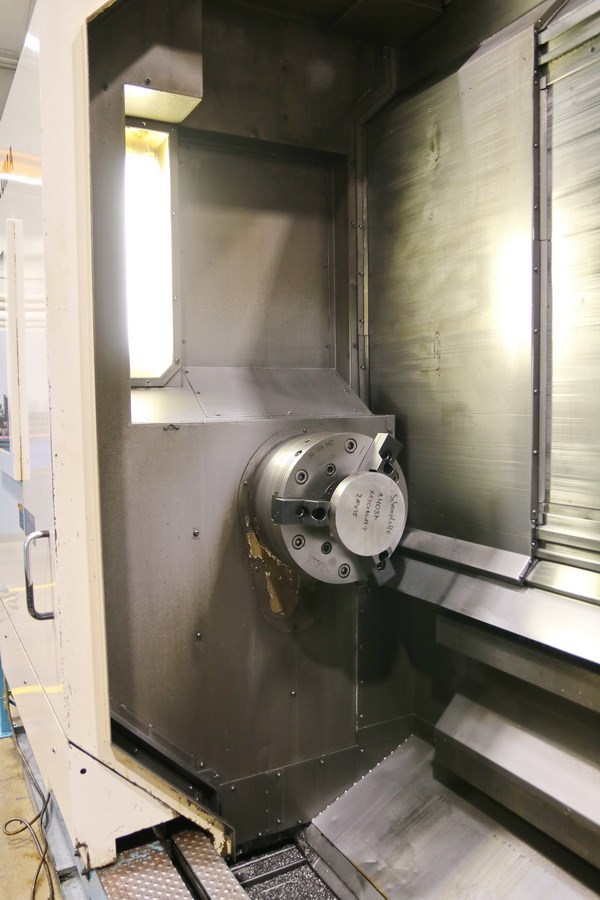

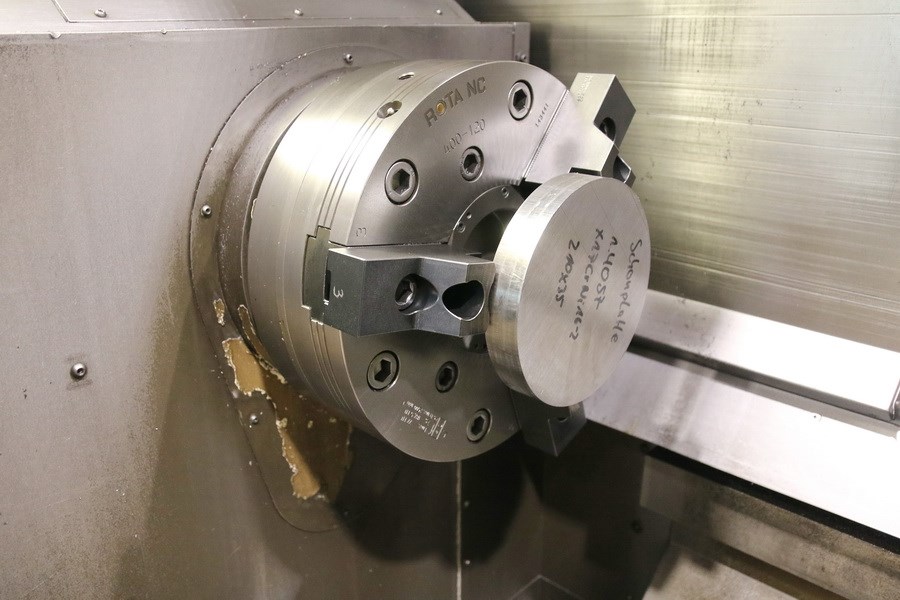

Schunk ROTA NC 400-120 three-jaw chuck
