WOODWORKING CNC ROUTER MACH 3

1,000.00 EUR

Status: Available

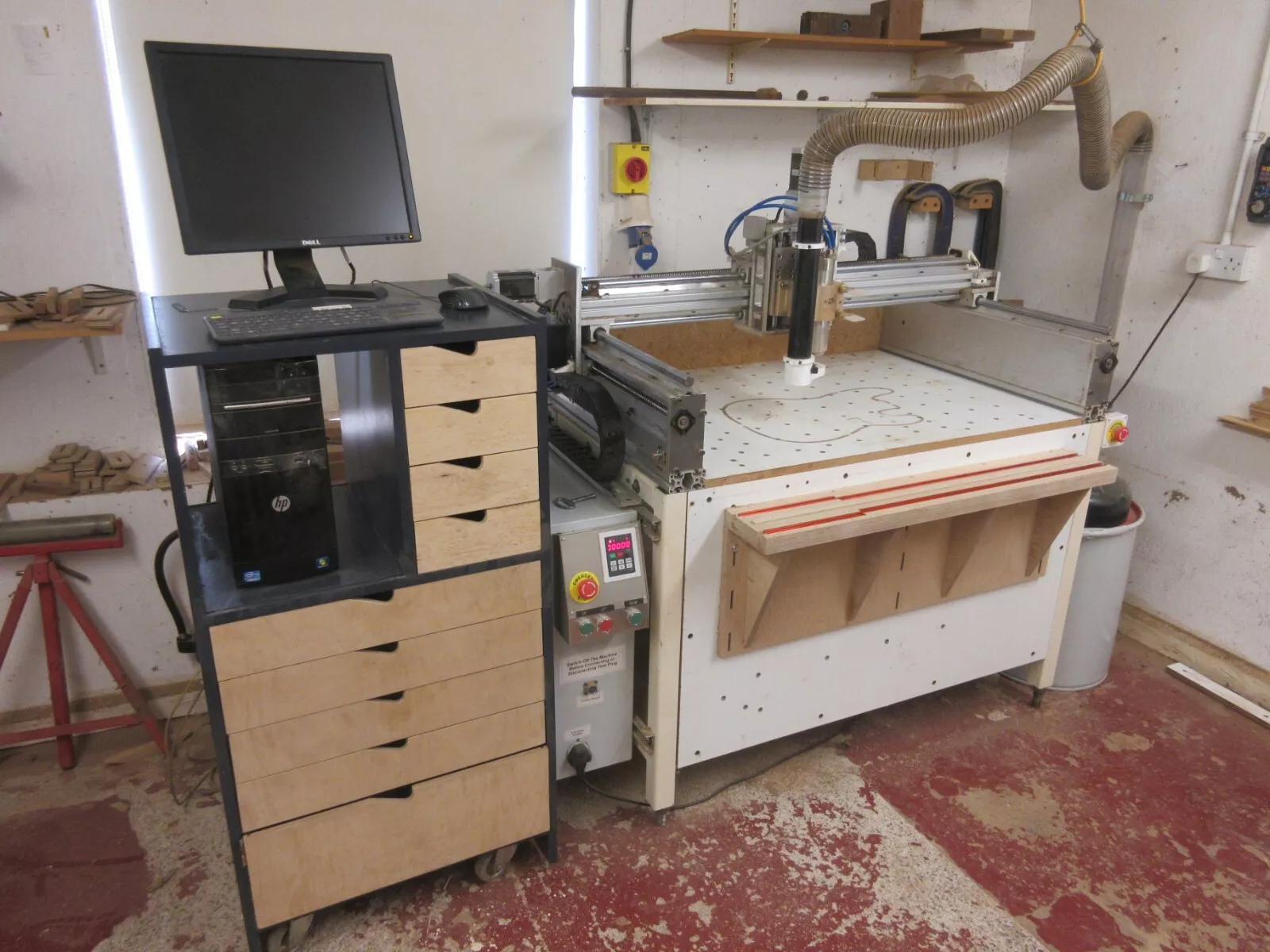

CNC router Mach3,
Spindle travels past end of bed to allow end machining on panels or machining Mortice and Tenons and Dovetails etc.
2.2kw Water cooled spindle,
Bed size 1025mm x 750mm (Rear panel can be removed for long panels),
X axis travel 825mm
Y axis travel 575mm (including overhang),
Z axis travel 100mm

Bed to bottom of Z axis = 175mm

Single phase 240 volt.

Ball screws and Bearing guides on all axis.

Independent limit and home sensors.

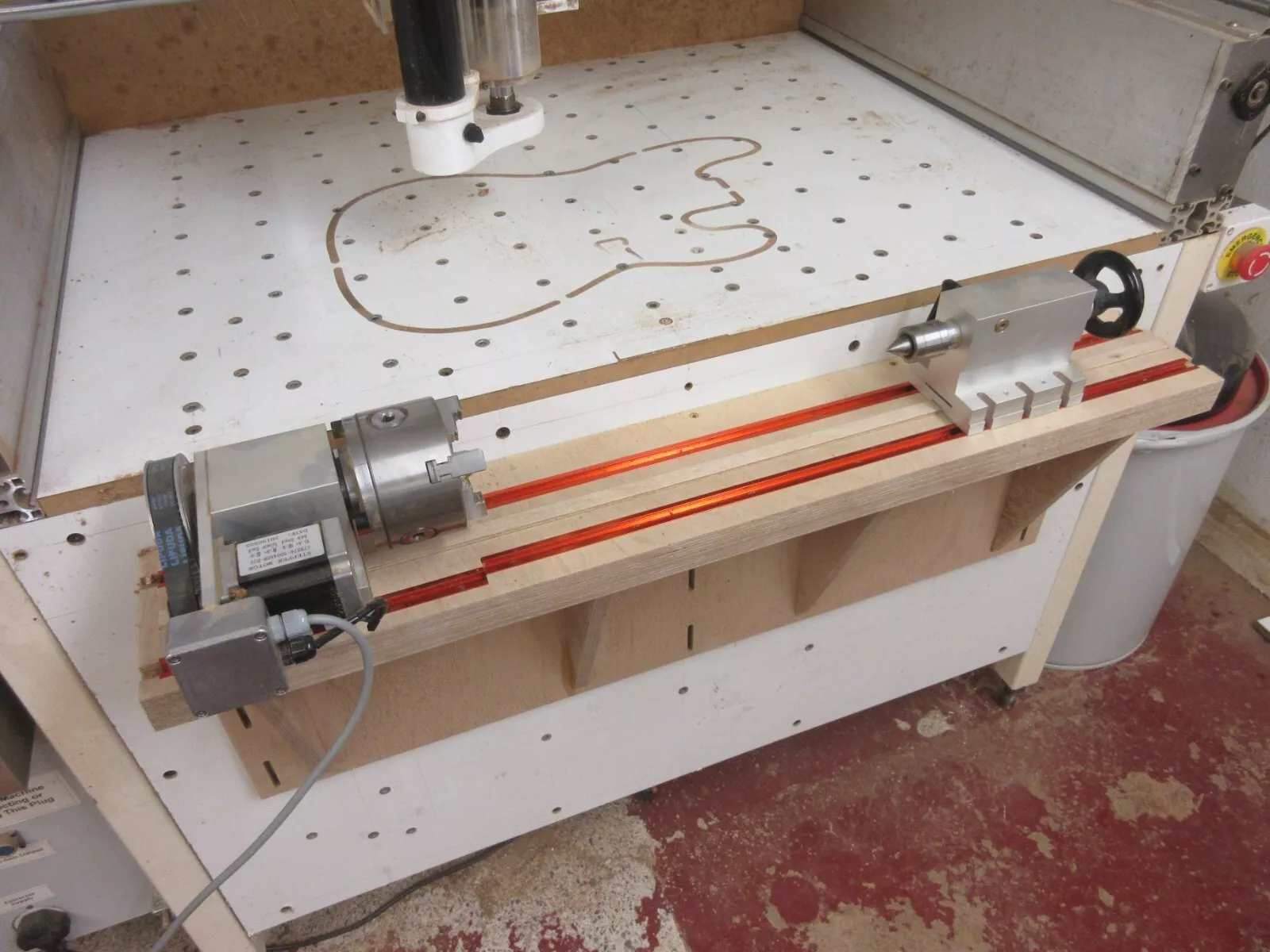

4th Axis Rotary chuck and centre included,

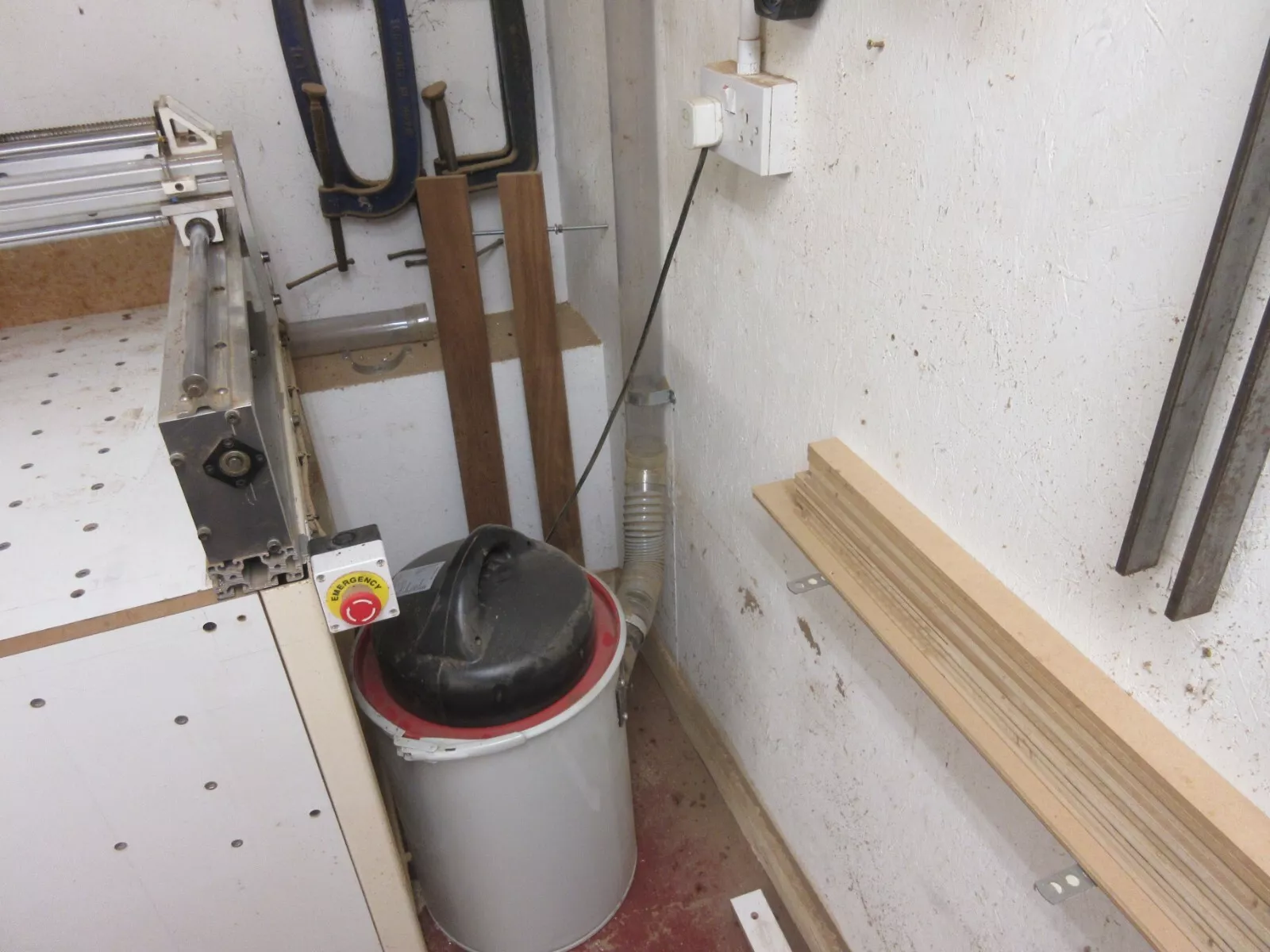

Chip extraction included,

Wireless handheld MPG pendant hand control,

Includes Full set of ER20 Spindle collets and Lock nuts with locking spanners

PC, Screen, Keyboard, mouse and tool cabinet,

Welded steel box section frame very rigid,

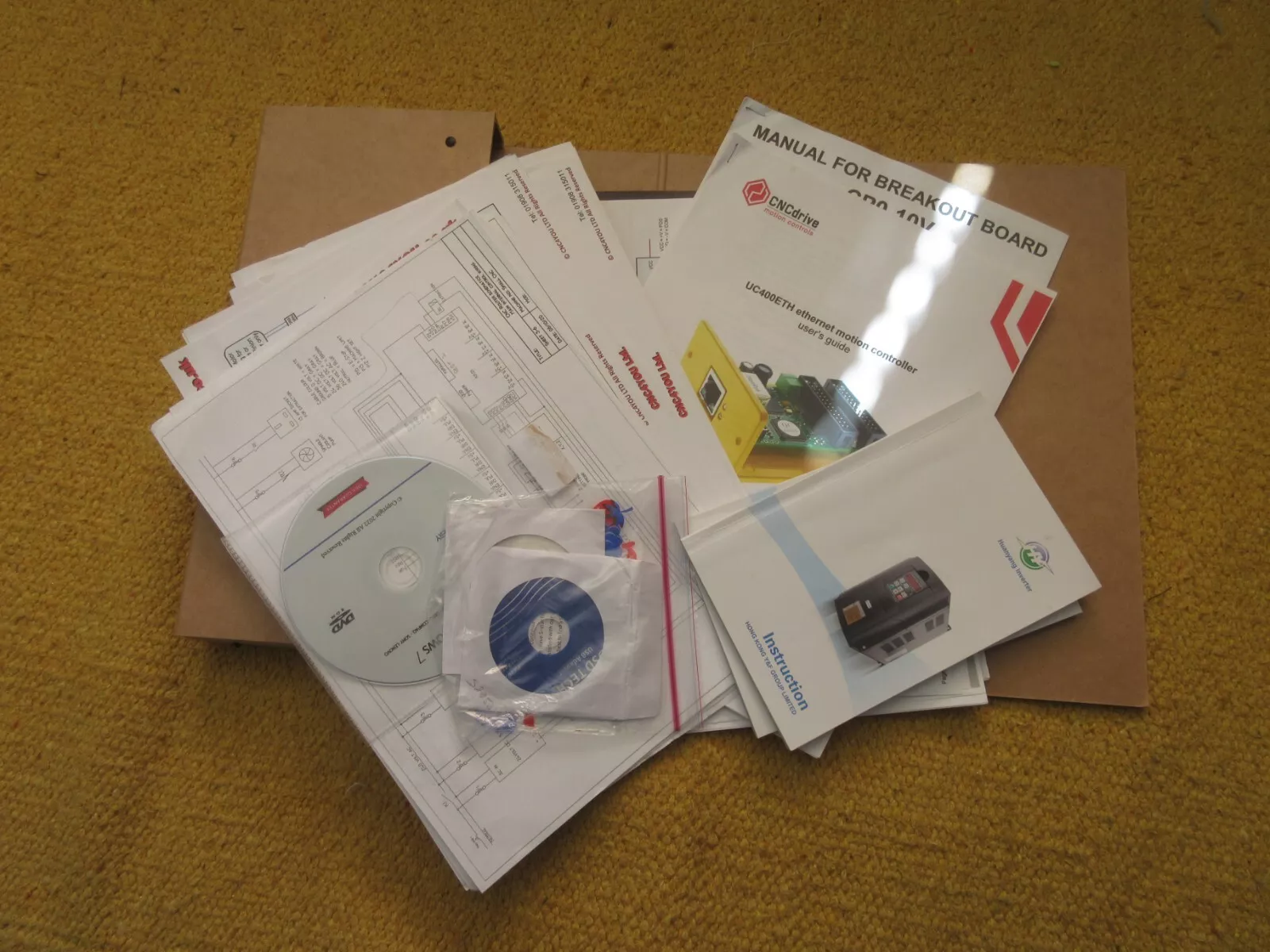

Includes all drawing and info from build.
