MORI SEIKI SL-203 SMC CNC

9,500.00 EUR

Status: Available

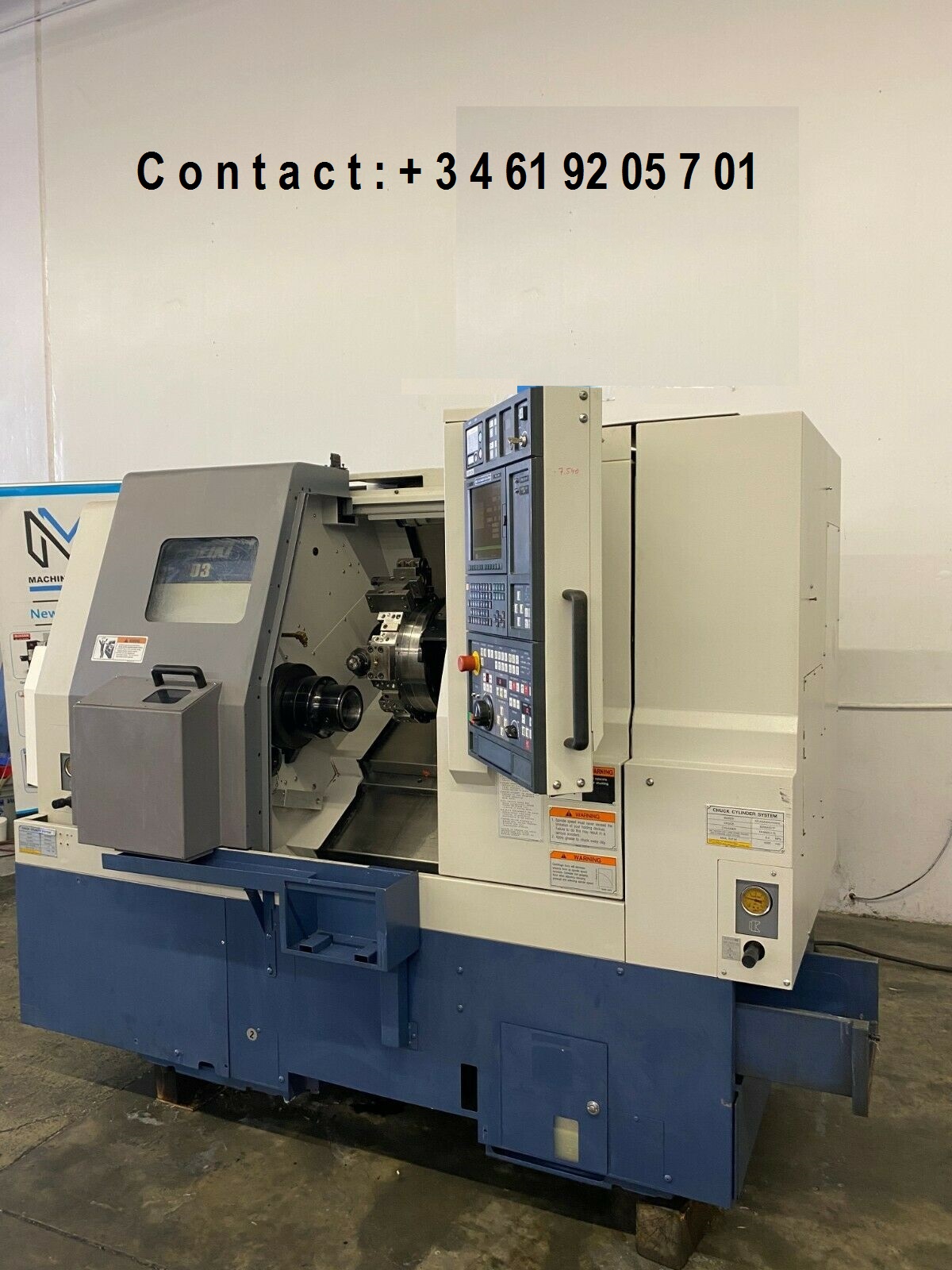

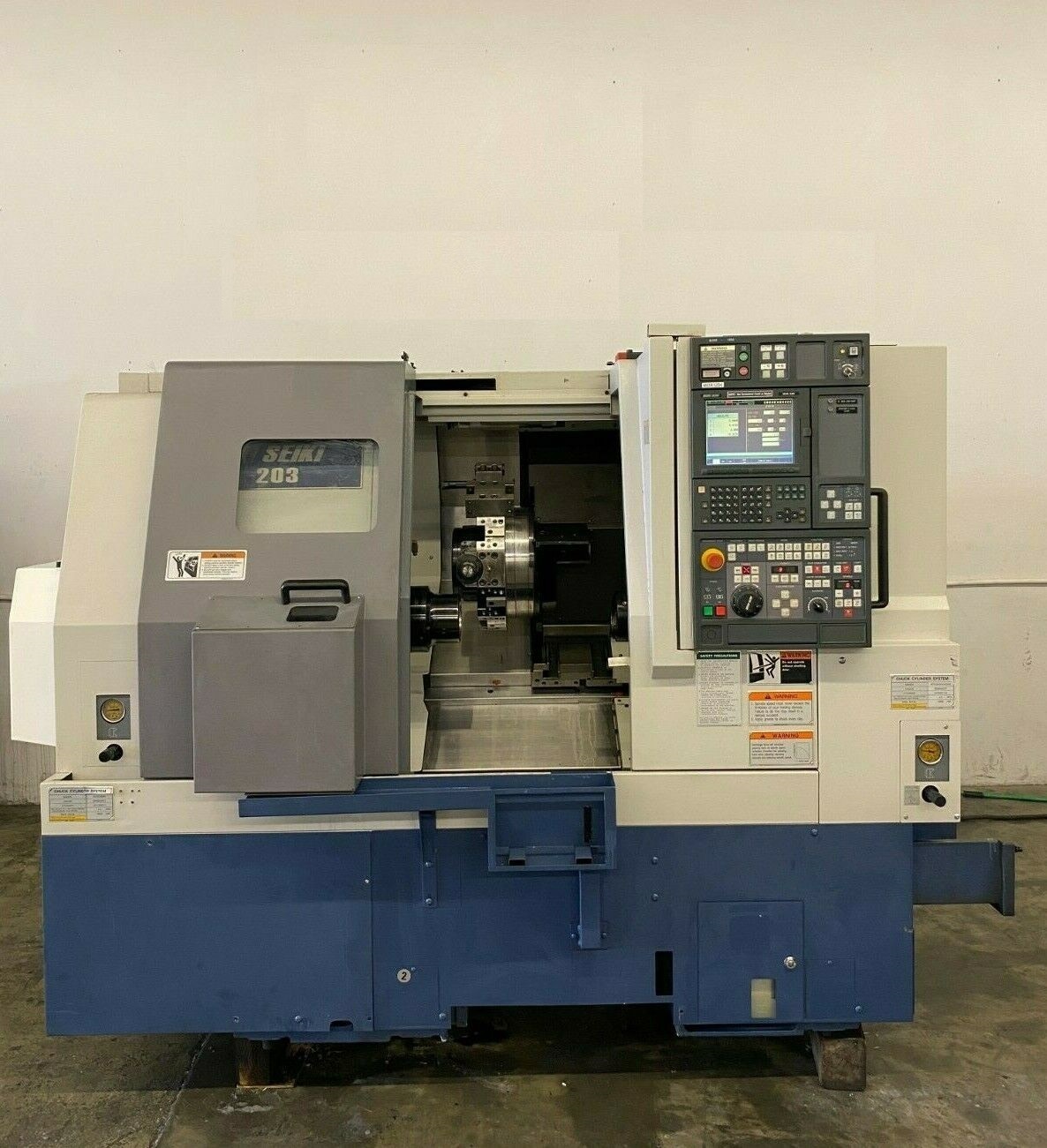

MORI SEIKI SL-203 SMC CNC TURNING CENTER LATHE
MAKE Seiki
MODEL NO. SL-203SMC
SERIAL # 1234
CONDITION Very Good
COMES WITH 2 X COLLET CHUCK, TOOL HOLDERS, PARTS & CHIP CONVEYOR
All specifications are approximations and are subject to verification.
MORI SEIKI SL-203 Equipped With:

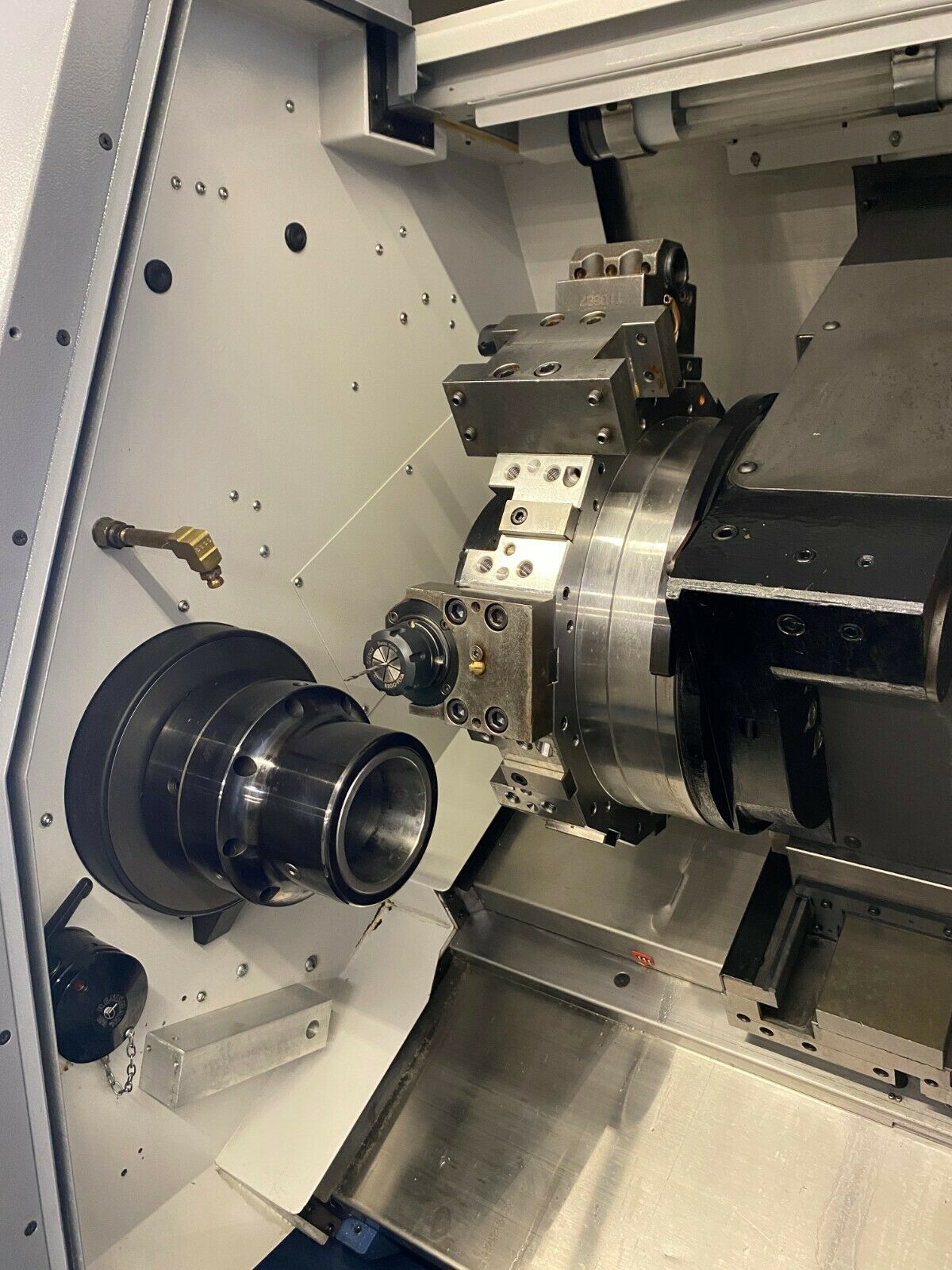

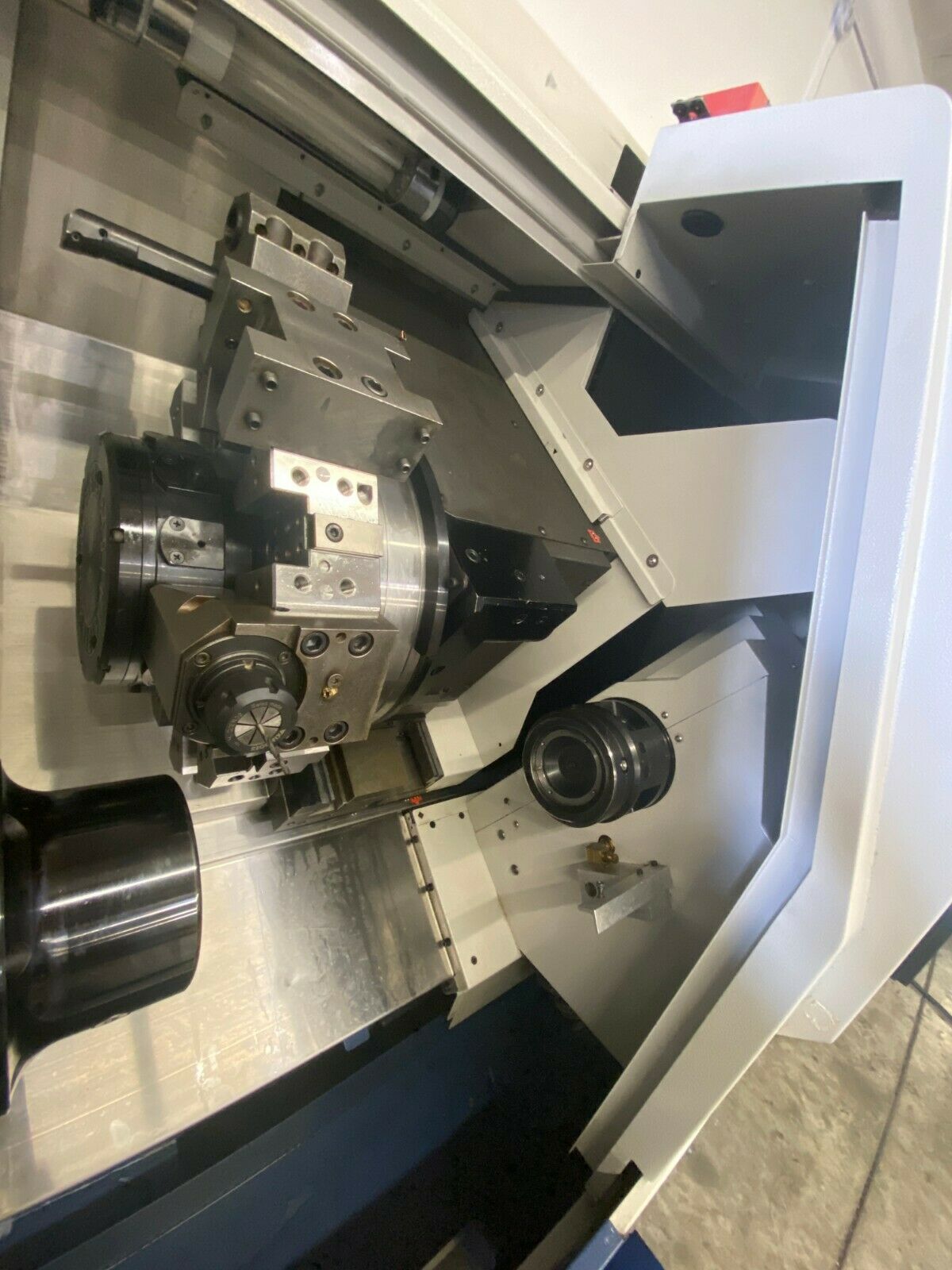

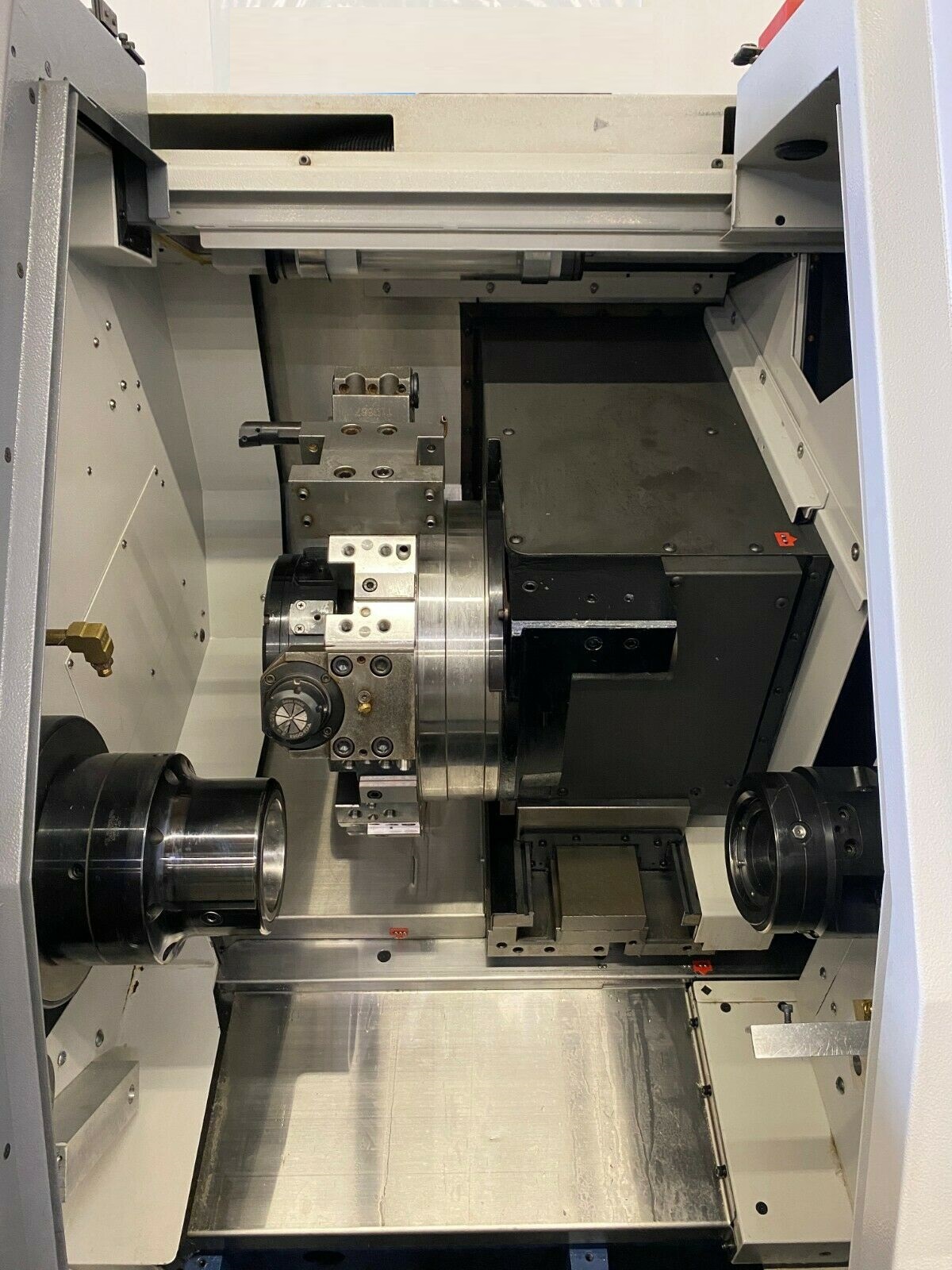

12-Station Turret – Live / Rotary Tools
Servo Controlled Full C-Axis on Both Spindles

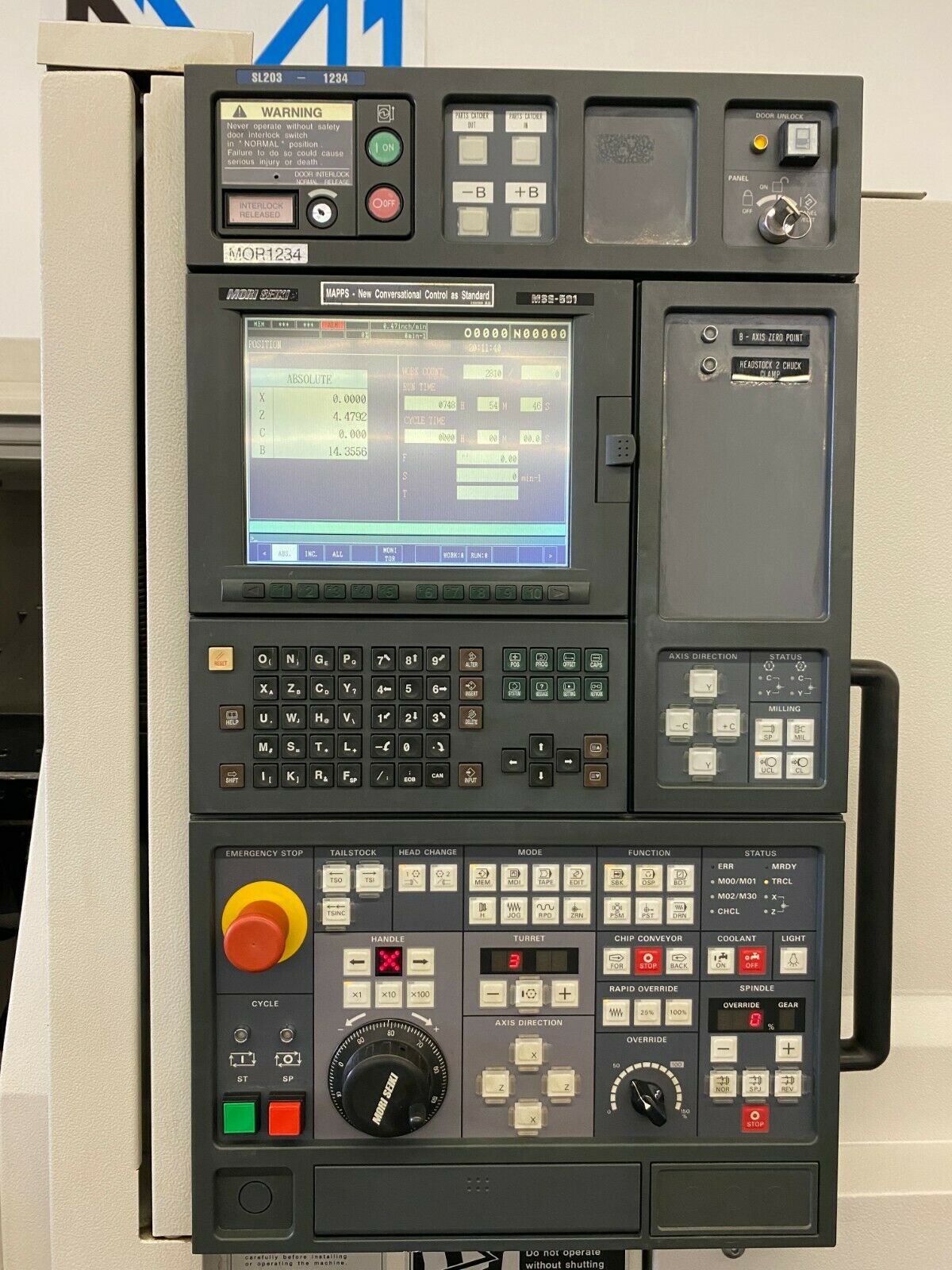

Fanuc 18iT CNC Control
PCMCIA Card Slot
Tool Presetter
Parts Catcher
Parts Conveyor
Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
Turbo Systems Chip Conveyor
Comes with 2 Live Tools & some Static Tool Holders
Books & Manuals
MORI SEIKI SL-203 Specifications:
Capacity:
Max Turning Diameter: 15.35?
Max Turning Length: 12.76?
Max Bar Capacity: 2.01?
Swing Over Bed: 26.77?
Swing over Cross Slide: 20.08?
Travels:
X Axis Travel: 9.25?
Z Axis Travel: 19.49?
B Axis Travel: 19.88? ( Sub Spindle )
C Axis:
Feedrate:
Rapid Traverse X Axis: 708 IPM
Rapid Traverse Z Axis: 945 IPM
Rapid Traverse B Axis: 945IPM
Spindle:
Main Spindle Bore: 2.87?
Sub Spindle Bore: 1.69?
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 40-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 15 HP
Sub Spindle Power: 10 HP
Live Tool Spindle Motor: 8.04 kw
Turret:
Capacity: 12 Live Stations Turret
Index Time: Second Live
Tool Speed: 3000 RPM
General:

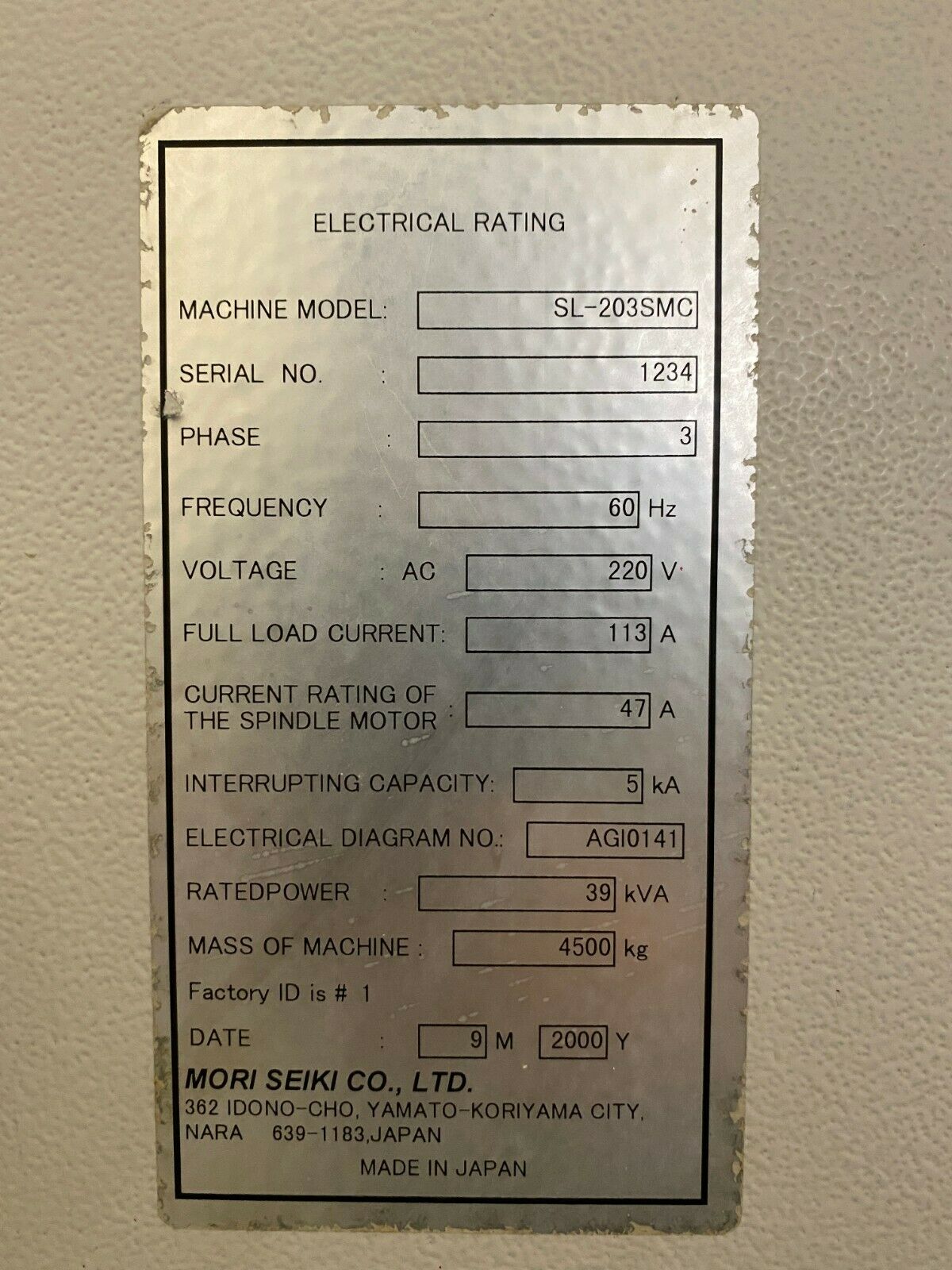

Power: 37.9 kVA, 220v / 3-Phase Overall
Dimensions: 92? x 71? x 72? High
Weight: 9,900 lbs
